PUMP FEA DESIGN
accorded to National Codes NTD A.S.I Sekce III, ASME Section III

Profil : 1. Pump and Electromotor Design with steel frame + Fatigue Analyses by NTD A.S.I Sekce III
Profil : 2. Check Calculation + Fatigue Analyses by ASME Section III
Profil : 3. Thermal Analyses
Profil : 4. Modal Analyses and Seismic design
Profil : 5. Proof of performace during seismic events - ASME QME-1-2007
Profil : 6. Design and check calculation - accorded to PNM34040180 and PNM34040183 NPP - Mochovce MO34

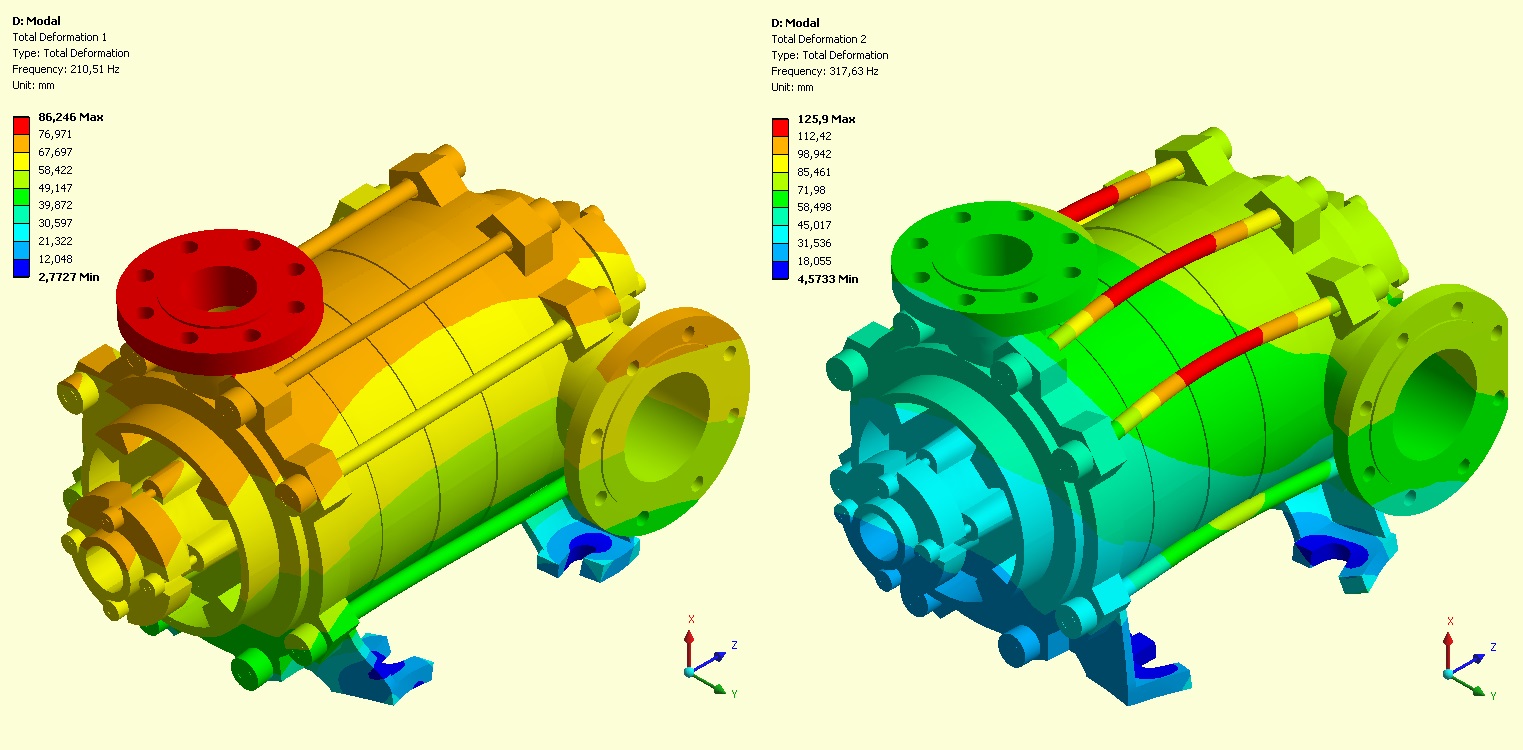

PUMP MODAL ANALYSES


PUMP FEA MESHED MODEL

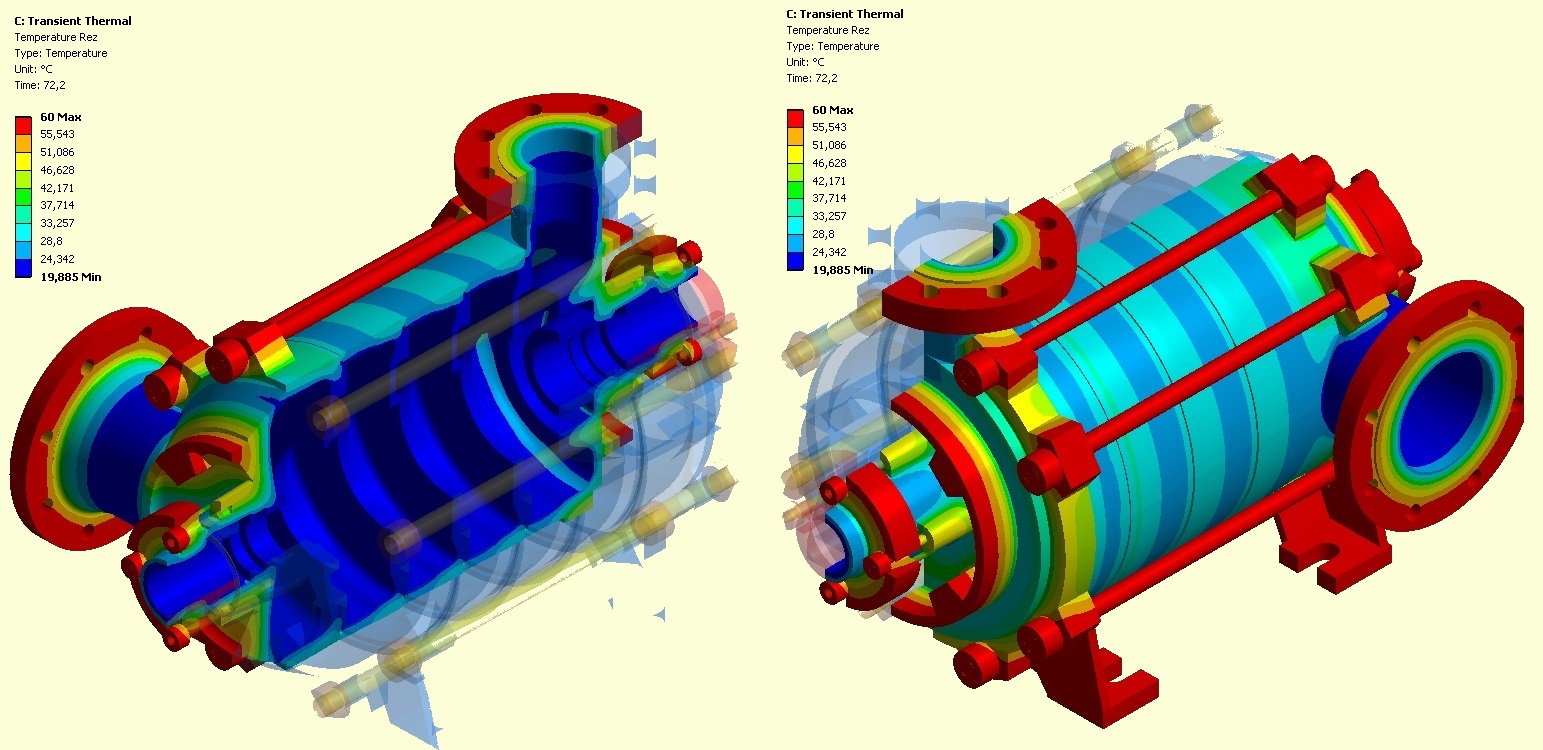

PUMP - THERMAL ANALYSES
