DESIGN OF TIGHTENINGS MOMENTS FOR PRESSURE VESSELS AND PIPELINES
Tightening moments for Flange Joints according to standards VDI 2230, EN 1591-1

Profil : 1. Tightening Moments - according to VDI 2230 - with external nozzle loads
Profil : 2. Tightening Moments - according to EN 1591-1 - with external nozzle loads
Profil : 3. Tightening Moments - according to STN 690010
Profil : 4. Tightening Moments - according on the basis of practical experience in designing flange joints and pressure vessels

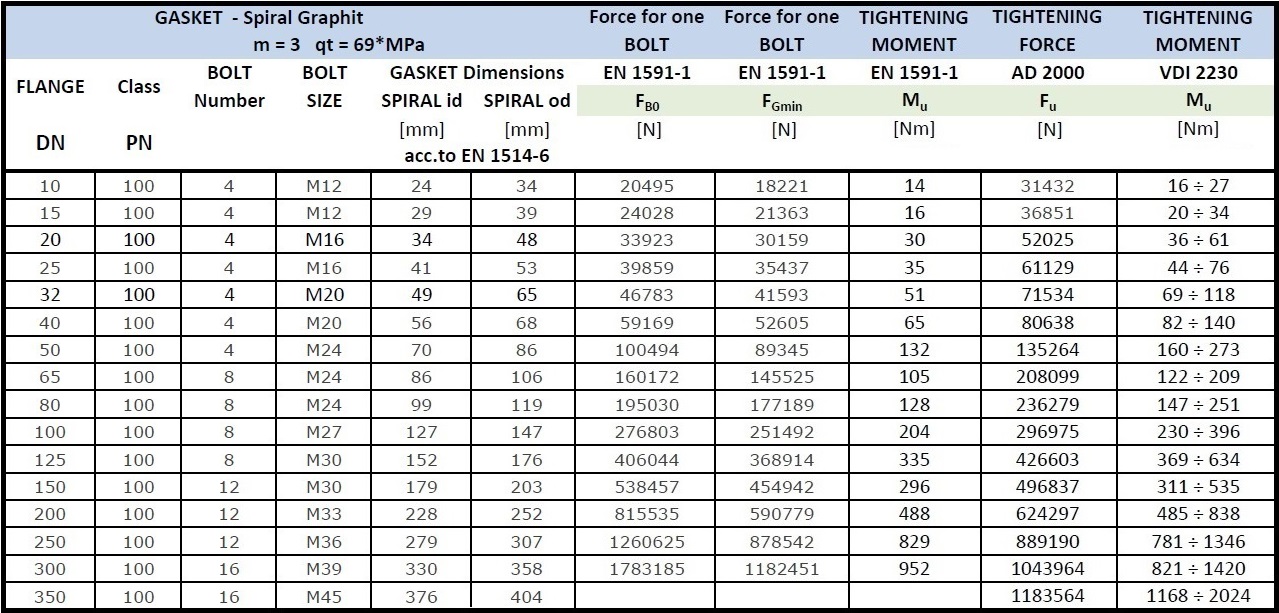

TIGHTENING MOMENTS FOR FLANGES PN100 - with SPIRAL GASKETS :



SOFTWARE FOR SOLUTIONS

WIN_SHELL R3.00 www.schell-software.de
MATHCAD 15 www.mathsoft.com
